SEISMIC REFRACTION
              This geophysical method is based on measuring the arrival times
              of seismic waves refracted by the interfaces between layers of ground,
              characterised by different propagation speeds. The energy source
              is represented by an impact on the surface. The energy radiates
              from the "shot point" - travelling both directly in the
              uppermost layer (direct arrivals), and deep down and laterally along
              layers at a higher speed (refracted arrivals) - then returning to
              the surface, where it is measured through the spreading of geophones
              geophone spreading (10 Hz frequency). Energising in different positions
              on the surface, it will be possible to deduce information about
              the geometry of the deep refractor layer, in many cases coincident
              with the bedrock.
SEISMIC REFLECTION
              This geophysical survey is based on measuring the outbound/inbound
              travel times of the seismic waves transmitted from the surface and
              reflected towards the surface of geological horizons with different
              characteristics. The energy transmitted is only reflected when there
              is a contrast of acoustic impedance (the product of the speed x
              the density of the material) between two superimposed layers. The
              scale of the contrast in the acoustic impedance between the two
              layers determines the amplitude of the reflected signal, which is
              measured on the surface thanks to a spreading of high frequency
              geophones (40 Hz, 100 Hz). As in the case of seismic refraction,
              the energy is produced by a ¨shot¨ or impact on the surface.
              For surface applications, this involves the use of a sledge hammer
              and a striking plate, a dropping weight, a seismic energiser or
              an explosive charge.
DOWN HOLE & CROSS HOLE
              In this type of seismic survey, the source and/or geophones are
              located in a hole prepared especially in the ground. One of the
              most common methods involves down hole testing (the source is on
              the surface, the sensor on the other hand is a 3D borehole geophone
              (P- & S-waves) or a chain of hydrophones (P-waves only, in a
              hole filled with water or drilling fluid). The down hole test aims
              to determine the profiles of the seismic compression waves (P-waves)
              and shear waves (S-waves) with the depth. It consists of producing
              a perturbation on the ground surface by means of a mechanical source
              and measuring the arrival time of the P- and S-waves at various
              depths in the hole prepared for the purpose. This technique is also
              used for calculating the Vs30 as an alternative to surface methods
              (e.g. MASW). Cross hole seismic tests, on the other hand, involve
              measuring the speed of the seismic waves between two survey holes,
              one for energisation (normally made with a borehole energiser or
              explosive) and the other for measurements (with a three-dimensional
              borehole geophone clamped at a certain depth). For each acquisition,
              the energisation depth and measuring sensor depth in the two holes
              should be the same. In this case, therefore, there must be two separate
              survey holes whose reciprocal distance from all the measurement
              levels must be known.
MULTICHANNEL ANALYSIS OF SURFACE WAVES (MASW)
              MASW is the acronym for Multichannel Analysis of Surface Waves.
              This indicates that the phenomenon being analysed is the propagation
              of surface waves. More specifically, the analysis focuses on the
              dispersion of surface waves (i.e. the fact that different frequencies
              – with different wavelengths - travel at different speeds).
              The basic principle is quite simple: the various components (frequencies)
              of the seismic signal that is being propagated travel at a speed
              that depends on the characteristics of the medium. More specifically:
              the larger wavelengths (i.e. the lower frequencies) are influenced
              by the deepest layers, while the small wavelengths (the highest
              frequencies) depend on the characteristics of the layers nearest
              the surface. As, typically, the speed of the seismic waves increases
              with depth, this will be reflected in the fact that the lowest frequencies
              of the surface waves will travel at a higher speed than the higher
              frequencies. MASW is traditionally performed by analysing Rayleigh
              waves, which are recorded using common 4.5Hz vertical component
              geophones - those used also for refraction in compressional waves
              - and considering a very common source with vertical impact, i.e.
              the classic sledge hammer. This occurs for at least two reasons:
              1. these geophones (and this acquisition method) are by far the
              simplest and most common. 2. the propagation and dispersion of Rayleigh
              waves occurs without any problems even in low speed channels (speed
              reversals) which, as we know, are invisible for refraction. On the
              other hand, exploiting the dispersion of Love waves (together with
              that of Rayleigh waves) is an exciting new frontier for MASW analysis
              (see the winMASW manual for more information) (please note that
              the use of Love waves is only possible with the MASW technique and
              not with the ReMi – Refraction Microtremors - technique).
              In summary: as the dispersion of the surface waves depends on the
              characteristics of the sub-soil (mainly on its vertical variations),
              by determining the dispersion curves, it is possible to deduce the
              characteristics of the medium (the essential parameters are the
              speed of the shear waves and the thickness of the layers) and all
              the parameter requested by the new seismic regulations introduced
              in most Countries all over the world. slut PASI
HVSR
              In light of the new seismic legislation, the measurement of environmental
              seismic vibrations or seismic noise has acquired considerable importance.
              The analysis of seismic noise measurements can be conducted using
              three methods: Fourier spectra Spectral ratios H/V spectral ratios
              The latter, which provides the most reliable results, is also known
              as the HVSR (Horizontal to Vertical Spectral Ratio) method or the
              Nakamura method. The H/V spectral ratio technique consists of calculating
              the ratio of the Fourier spectra of the noise in the horizontal
              plane H (generally the spectrum H is calculated as the average of
              the Fourier spectra of the horizontal components NS and EW) and
              the vertical component V. The acquisition of HVSR data, obtained
              using low frequency triaxial (3D) geophones, make it possible to
              determine with accuracy the characteristic frequency of resonance
              of the site, an essential parameter for the correct dimensioning
              of earthquake-resistant buildings. During the design, it is important
              to build structures with different resonant frequencies to the ground,
              thereby preventing the ¨double resonance¨ effect which is
              extremely dangerous for structural stability. Seismic microzonation
              studies using the HVSR measurement method have therefore become
              an integral, essential instrument in the design of earthquake-resistant
              buildings.
geomatrix Seismic Exploration Systems These instruments are suitibale
              for near survface Refraction, Reflection, MASW and MAM investigations
              for all engineering disciplines. Seismic download Systems Downhole
              and crosshole techniques aid derive higher resolution P & S Wave
              velocity measurements for improved engineering ground models. Seismic
              Monitoring Used to measure strong and weak motion events, aftershocks
              and very deep lithology. These systems are also used for monitoring
              large structures. ABEM Near-surface seismics is a method that utilizes
              a vibration source to measure propagation of elastic waves. The
              results will show the mechanical properties of the ground. Common
              applications are soil stability, rock quality and depth to bedrock.
              ABEM Terraloc Pro is a seismograph that can be used for seismic
              surveys ranging from simple refraction measurements to complex 3D
              cross-borehole tomography. SHALLOW SEISMIC REFRACTION In this type
              of survey you examine low and high velocity layers down to the basement
              rock, and map tectonic features and quality changes. Features within
              the overlaying sedimentary layers are also investigated. SHALLOW
              SEISMIC REFLECTION Reflection surveys are becoming more and more
              popular for shallow studies thanks to significant improvements in
              the dynamic range of modern seismographs. Reflection surveys require
              powerful filtering, on-board trace scaling, high frequency energy
              sources and high frequency geophones for the best results. MASW
              (MULTI-CHANNEL ACQUISITION OF SURFACE WAVES) Determine engineering
              modulii through the measurement of surface or Rayleigh waves, all
              that is needed is an impulsive energy source such as a hammer or
              PEG-40, and a standard Geode with 4.5 Hz geophones. 1D or 2D measurements
              can be taken very quickly in the field. For deeper investigations,
              record passively utilising background noise from traffic or construction
              as your energy sources. As these vibrations tend to be of a lower
              frequency, the resulting shearwave profile yields greater depths.
              Combine these measurements with active source measurements for a

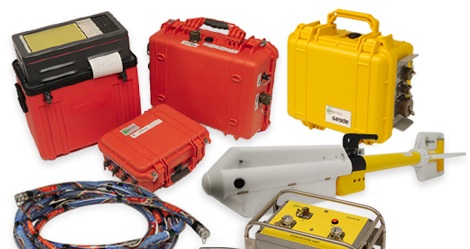

              complete shear wave profile to the ground surface. Geometrics'
              seismograph
              Geometrics is a division of OYO Corporation and headquartered in
              San Jose, CA. The company is a worldleading designer and manufacturer
              of land, marine and airborne geophysical hardware, sensors and software,
              covering seismic, magnetic, and electromagnetic technologies. Founded
              in 1969, Geometrics began operations developing innovative magnetometers,
              and now has representatives worldwide in over 50 countries. With
              over 46 years of field experience and extensive knowledge, Geometrics'
              staff of engineers and technicians has worked with universities,
              research institutions, government agencies and exploration companies
              to provide solutions to all kinds of geophysical and geotechnical
              exploration needs.
              ABEM
              seismograph
              Aktiebolaget Elektrisk Malmletning (ABEM), a producer of electrical
              equipment for ore prospecting, in 1923. Shortly afterwards, Sveriges
              Geologiska Undersökningar (SGU), the company that developed
              the first electromagnetic loop for ore and metal detection, established
              an office in Malå, in northern Sweden. The success story grew
              from there. By the 1950s, ABEM was Europe's largest geophysical
              consulting company, while SGU eventually evolved into MALÅ
              GeoScience AB with a proud heritage of technical developments and
              world-beating innovations, leading to today's pre-eminence in ground
              penetrating radar (GPR).
ABEM and MALÅ joined forces in the early 1990s and were incorporated into Guideline Technology AB between 2007-2011.
